Counterbore Bridge Gizmo

Per-hole bridge layer control with smart fill that only bridges painted regions. Fill direction adapts to each hole's corridor angle independently.

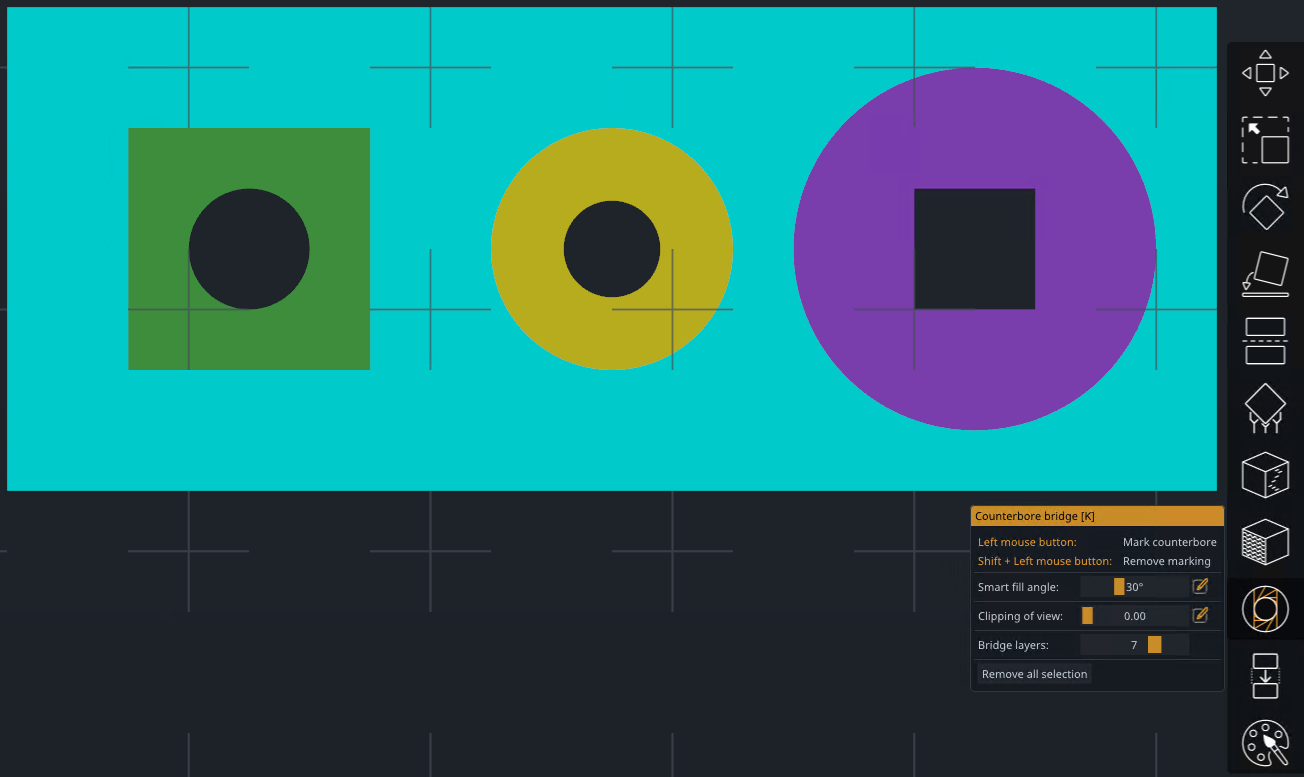

The Counterbore Bridge gizmo is a painting tool for controlling bridge generation above counterbore holes. Mark counterbore regions with the left mouse button, set the number of bridge layers, and preFlight handles the rest.

Smart Bridging

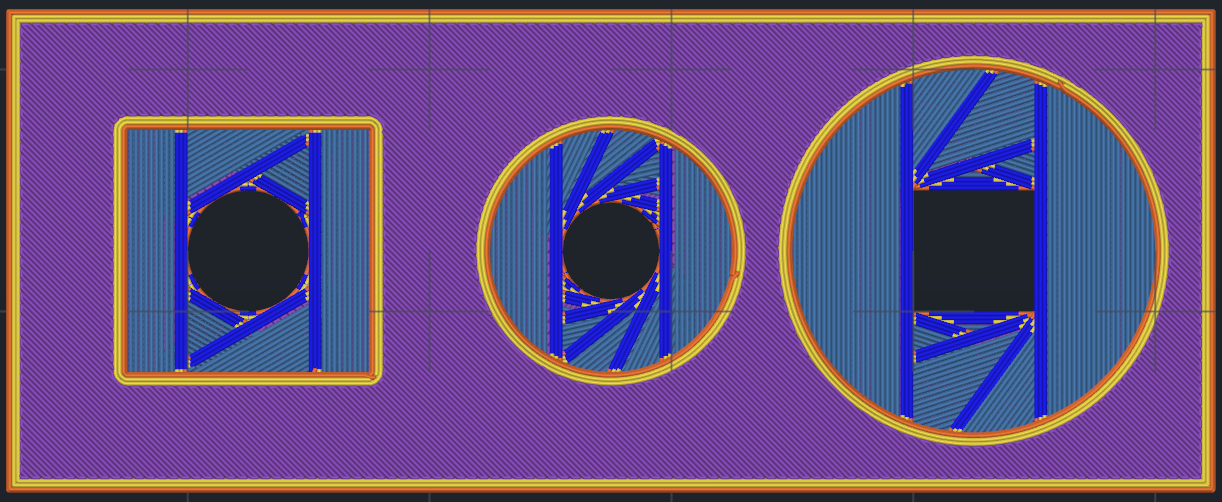

The transition begins at the painted layer and extends upward through the specified number of bridge layers. Fill direction adapts to each hole's corridor angle independently, ensuring optimal bridging regardless of hole shape or orientation.
